150BPH 300BPH 450BPH 600BPH Full Set 20 Liter Bottled Water 5 Gallon Jar Filling

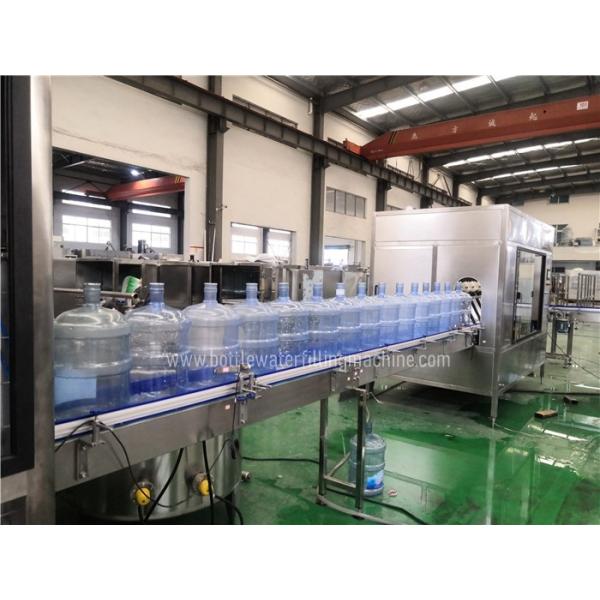

this is 5 gallon water production line, capacity is 600BPH,
includes:
1. decapper;
2. internal&external brushing machine;
3. rinsing filling capping machine;
4. labeling machine;
5. shrinking maching;
6. bagging machine

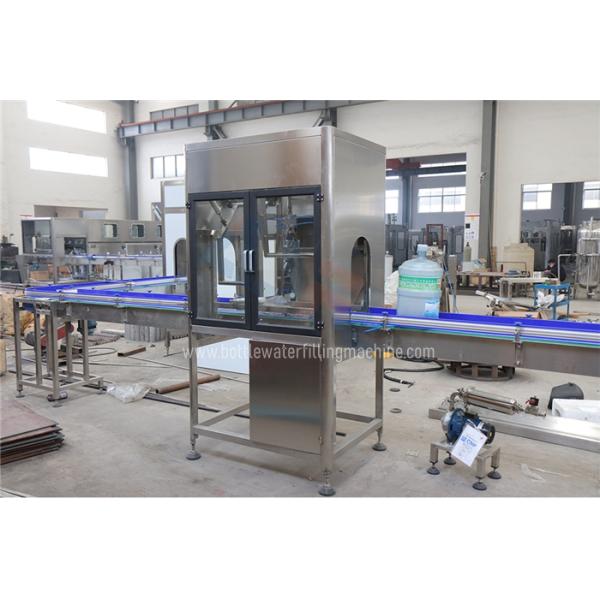

decapper

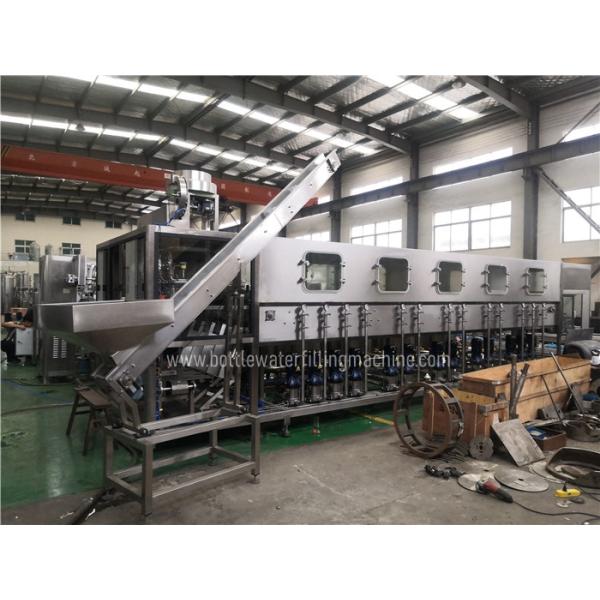

rinsing filling capping machine
QGF-600 barrel filling line is used to produce 5 gallon drinking water. This machine composed with Rinse, filler and capper. It is the ideal equipment for mineral water, distilled water and pure water producing process. The machine is made of great stainless steel which is corrosion resistant and easy cleaning. All the pneumatic parts are from the famous brand AIRTAC. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American
Sprayer Company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It Is a fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components
We have different capacities
| Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling Heads | 1 | 2 | 3 | 4 | 6 |
| Capacity | 150 | 300 | 450 | 600 | 900 |
| Volume(gallon) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size (mm) | φ 270 x 490 | φ 270 x 490 | φ 270 x 490 | φ 270 x 490 | φ 270 x 490 |
| Capacity(b/h) | 120 | 300 | 450 | 600 | 900 |
| Gas Pressure(Mpa) | 0.4 - 0.6 | 0.4 - 0.6 | 0.4 - 0.6 | 0.6 | 0.6 |
| Gas Consumption (m3/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 |
| Moto Power(kw) | 1.38 | 3.8 | 3.8 | 7.5 | 9.75 |
| Rated Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight(kg) | 680 | 1500 | 2100 | 3000 | 3500 |
Our professional teams are waiting for your inquiry... ...
